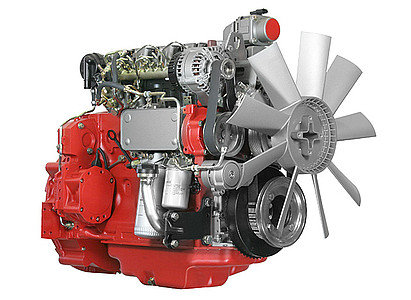

TCD 2012 L6 (Agri)

Engine for agricultural machinery.
Modern, water-cooled 6-cylinder in-line engine.
Turbocharging with charge air cooler
Robust engine with high power density
Power take-off options integrated into the gear drive
Electronic engine control with intelligent adaptation to drive management
High-pressure fuel injection with DEUTZ common rail system (DCR®)
4-cylinder optional with mechanical injection system up to 88 kW

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 6
Bore 101 mm4 in
Stroke 126 mm5 in
Displacement 6.1 l370 cu in
Maximum nominal speed 2400 rpm
Power output 155 kW208 hp
at speeds 2400 rpm
Max. torque 810 Nm597 lb/ft
at speeds 1600 rpm
Min. idling speed 650 rpm
Specific fuel consumption 215 g/kWh0.35 lb/hph
Length 1018 mm40.1 in
Width 659 mm25.9 in
Height 893 mm35.2 in
Weight 510 kg1124 lb
