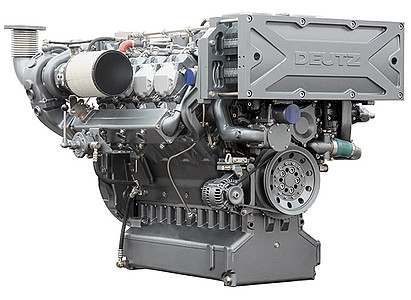

TCD 2015 V8 M

Water-cooled 8-cylinder V engine (90°) with turbocharging and charge air cooling.
The powerful and robust solenoid valve injection system (MVS) and the electronic engine control (EMR 3) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
100% power take-off at flywheel and front end and additionally two PTO drives with a total torque of up to 400
Low fuel consumption, low maintenance costs and long engine life reduce the operating costs.
The engines comply with the emission limits in accordance with IMO, EU, ZKR and EPA.
The engine-driven cooling water pumps simplify the installation for keel and rawwater cooling.
The extremly compact engine design and customer friendly accesoires reduce the installation costs.
DEUTZ marine engines are developed especially for the requirements of marine applications and meet the requirements of the classification societies.Type Approvals of the IACS classes and other classes are available on request.

Technical data
Number of cylinders 8
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 15.9 l970 cu in
Propulsion engines LG A 450 kW603 hp
Propulsion engines LG B 500 kW671 hp
Specific fuel consumption 206 g/kWh0.34 lb/hph
Length 1670 mm65.8 in
Width 1334 mm52.5 in
Height 1060 mm41.7 in
Weight 1570 kg3461 lb
Download data sheet (PDF-file)
