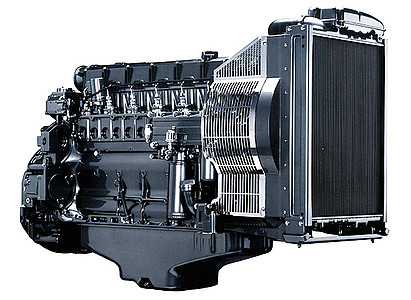

BF 4 M 1013 FC

Water-cooled 4-cylinder inline engine with turbocharging and charge air cooling.
The robust engine design allows worldwide operation even with high sulphur fuels.
Easy, inexpensive installation due to minimum weight and small installation space.
Best cold starting performance even under extreme conditions.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Also available with an electronic motor regulator (EMR) to allow easy integration into the electronic device control and monitoring system.
A very good load response ensures an immediate power supply.

Technical data
Emission norms EU II, US T2
Number of cylinders 4
Bore 108 mm4.2 in
Stroke 130 mm5.1 in
Displacement 4.8 l290 cu in
Typical generator power at 50 Hz / 1500 rpm
Typical generator power (COP) 106 kW142 hp
Typical generator power (PRP) 117 kW157 hp
Typical generator power (LTP) 129 kW173 hp
Typical generator power at 60 Hz / 1800 rpm
Typical generator power (COP) 112 kW150 hp
Typical generator power (PRP) 124 kW166 hp
Typical generator power (LTP) 136 kW182 hp
Length 1572 mm62 in
Width 886 mm35 in
Height 1073 mm42 in
Weight 660 kg1455 lb
Download data sheet (PDF-file)
