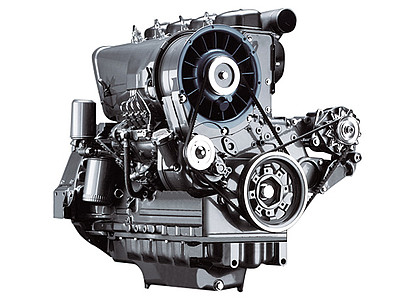

F 5 L 912 / W

Air-cooled 5-cylinder naturally aspirated in-line-engine. Direct injection.
Advanced injection and combustion system.
PTOs via gear, V-belt and crankshaft.
Extremely compact design.
High torque at low speeds.
Modular system with single cylinder arrangement and high degree of parts commonality.
Customized component system with many different peripheral parts.
Cold-starting ability even under extreme climatic conditions.

Technical data
Emission norms CN II
Number of cylinders 5
Bore 102 mm4 in
Stroke 132 mm5.2 in
Displacement 5.4 l327 cu in
Maximum nominal speed 2500 rpm
Power output 68 kW91 hp
at speeds 2500 rpm
Max. torque 308 Nm227 lb/ft
at speeds 1450 rpm
Min. idling speed 650 rpm
Specific fuel consumption 225 g/kWh0.37 lb/hph
Length 954 mm37.6 in
Width 679 mm26.7 in
Height 833 mm32.8 in
Weight 380 kg838 lb
Download data sheet (PDF-file)
