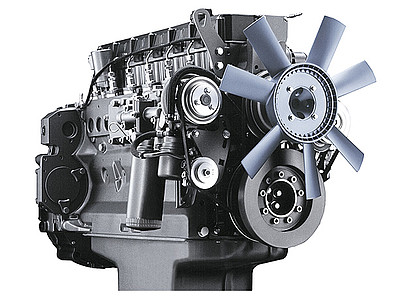

BF 6 M 1013 EC

Modern water-cooled 6-cylinder in-line engine.
Three separate mounting options for gear-driven hydraulic pumps.
Easily accessible service points on one engine side.
Exchangeable cylinder liners in cooling water flow.
Displacement 1.2 liters per cylinder.
Compact design, high power-to-volume-ratio.
Turbocharging with charge air cooling, integrated engine cooling package optional.
Integrated high-pressure fuel injection system with single injection pumps.
Electronic engine governor with diagnostic facilities with CAN-Bus optional.

Technical data
Emission norms EU II, US T2
Number of cylinders 6
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 7.2 l439 cu in
Maximum nominal speed 2300 rpm
Power output 174 kW233 hp
at speeds 2300 rpm
Max. torque 854 Nm630 lb/ft
at speeds 1400 rpm
Min. idling speed 650 rpm
Specific fuel consumption 205 g/kWh0.34 lb/hph
Length 1162 mm45.7 in
Width 683 mm26.9 in
Height 990 mm39 in
Weight 572 kg1261 lb
Download data sheet (PDF-file)
